Technical Parameters

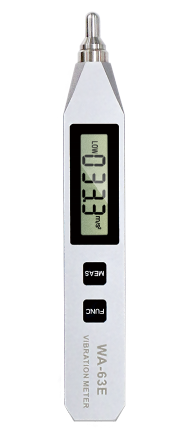

Model：WA-63E

Measurement function: acceleration/velocity/displacement

Work Environment ：Temperature 0 degrees ~40 degrees, relative humidity 30~90RH

Fequency Range：accelerated speed：10Hz～1KHz（L0W）

1KHz～15KHz(HI)

speed : 10Hz ～ 1KHz

displacement ：10Hz～500Hz

Range of Measurement ：accelerated speed：0.1～199.9m/s² Peak(RMS×1.414)

speed：0.1～199.9 mm/s RMS

displacement：0.001～1.999 mm P-P(RMS×2.828)

Measuring accuracy: accuracy: ±5% + 2 word reading (% + word), calibration period for one year；

Display mode: 3 semi-liquid crystal display

Standard of Security : GB 4793.1—2007

Pollution level: level 2

Power : built-in 3.7V lithium battery, full of electricity use about 30 hours

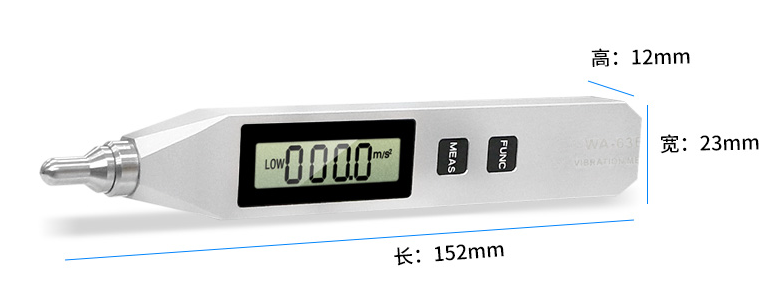

Size：152mmx23mmx12mm(LxWxH）

Weight：75g

FAQ

Q1:Why choose weiao?
1.      100% QC inspection Before Shipment.
2.      Best Service and competitive Price.
3.       Delivery Time so fast.

Q2:Can I get samples?
Yes, certainly.      We will provide the existing samples for free, Sample fee is refundable when you make anorder from us.

Q3.     What about the lead time?
When you complete the payment, we will send it to you within 1-3 days.
According to the courier company you choose, you can receive our products in front of your house in the fastest 3-5 days.

Q4:What is the payment method we can support?
You can pay by TT transfer,Payapal for small amount .
