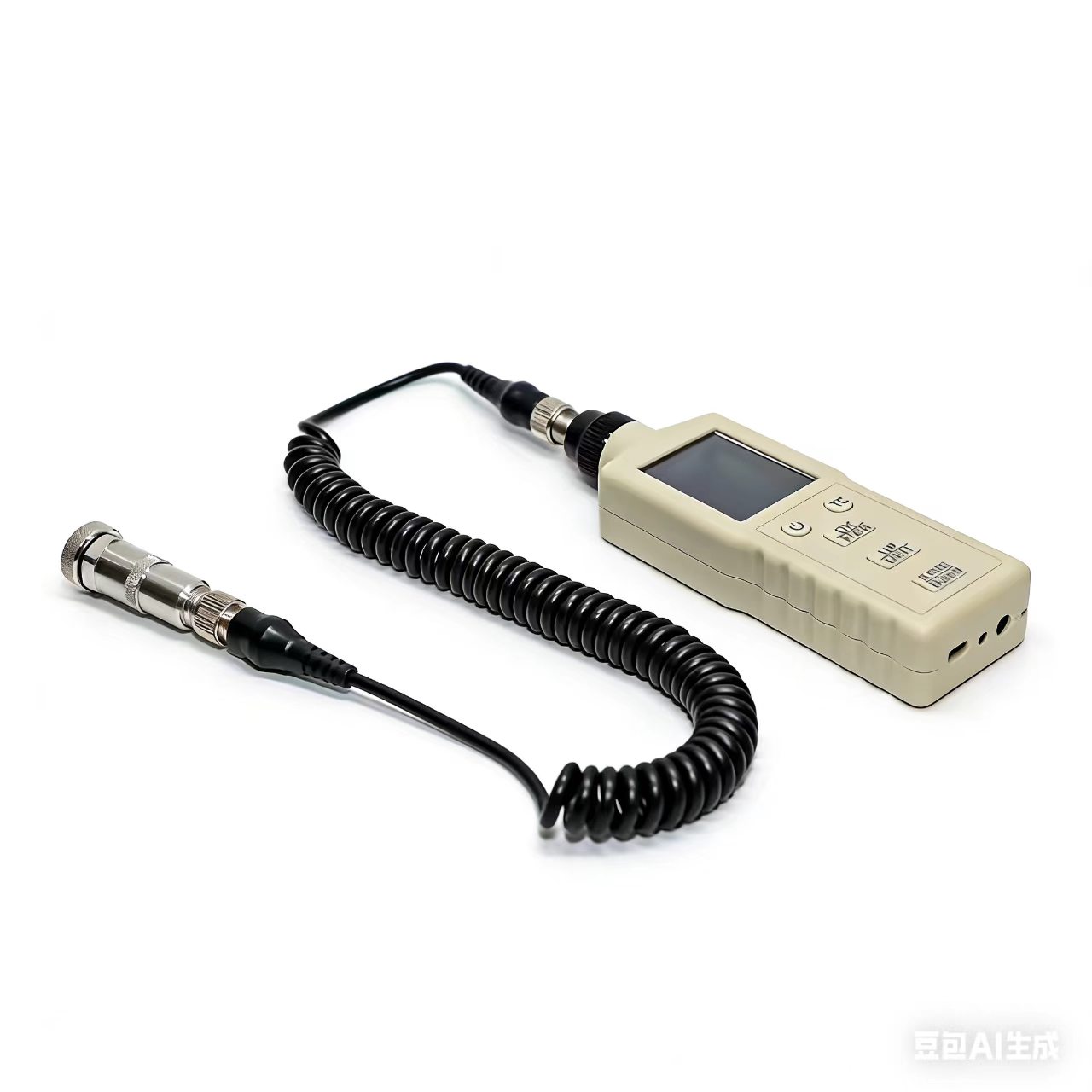

This series of vibration meters is designed for vibration measurement of rotating machinery. It can measure vibration acceleration, vibration velocity RMS, and displacement peak-to-peak value. In velocity measurement mode, built-in ISO10816 Assessment standards vibration value，Auto indicate bearing the alarm status. infrared temperature measurement function. easy to operate and portable. It is mainly used for spot check quickly, such as : turbines, motors, fans, pumps, compressors, and machine tools, It can also be used for preventive inspection of faults in rotating machinery and equipment. The values of the vibration are  displayed on the liquid crystal display directly.suitable for on-site equipment operation and maintenance personnel to monitor the equipment status.Detect issues promptly to ensure equipment operates normally and reliably., It has an AC signal output socket, Enables recording and analysis of vibration signals. Touch tip to target, press OK/VIBR Key.

Sensor: Piezoelectric acceleration type

Measurement range:

Low- Frequency Acceleration (ACC): 0.01 ~ 299.9 m/s² Peak (RMS × 1.414)

High-Frequency Acceleration (BG): 0.01 ~ 299.9 m/s² Peak (RMS × 1.414)

Velocity (VEL): 0.01 ~ 299.9 mm / s  RMS

Displacement (DISP): 0.001 ~ 2.999 mm  P-P (RMS × 2.828)

Measurement accuracy: ± 5% ± 2 words (% reading ± words)

Frequency measurement vibration range:

Low-frequency acceleration: 10 Hz ~ 1 kHz  (ACC)

High- frequency acceleration: 1 kHz ~ 15 kHz  (BG)

Velocity: 10Hz-1kHz

Displacement：10 Hz ~ 1 kHz

infrared temperature measurement range: -20 ° C ~ + 260 ° C (± 3% ± 2 words) ,(customize parameter + 420 ° C)

Temperature measurement focal length: 25 cm ± 5cm

Alarm: built-in ISO10816 Assessment standards vibration value，Auto indicate bearing the alarm status.

Battery: lithium battery3.7V / 1500mAh, charging adapter: 5V / 1A (the power < 20% change in time), Operates for about 20 hours.

Operating voltage: 3.7V-4.2V, 80mA

Usage environment temperature : -10° C  ~ + 50° C ,Relative humidity:30RH ~ 90RH.

Display mode: 2.0-inch color TFT display screen, 4-digit digital display.

Specification: length 178.5 * width 52.5 * height 27 (mm)

Net weight(N.W.): 200 g

Choose the model according to your requirements.

WA-V166E
