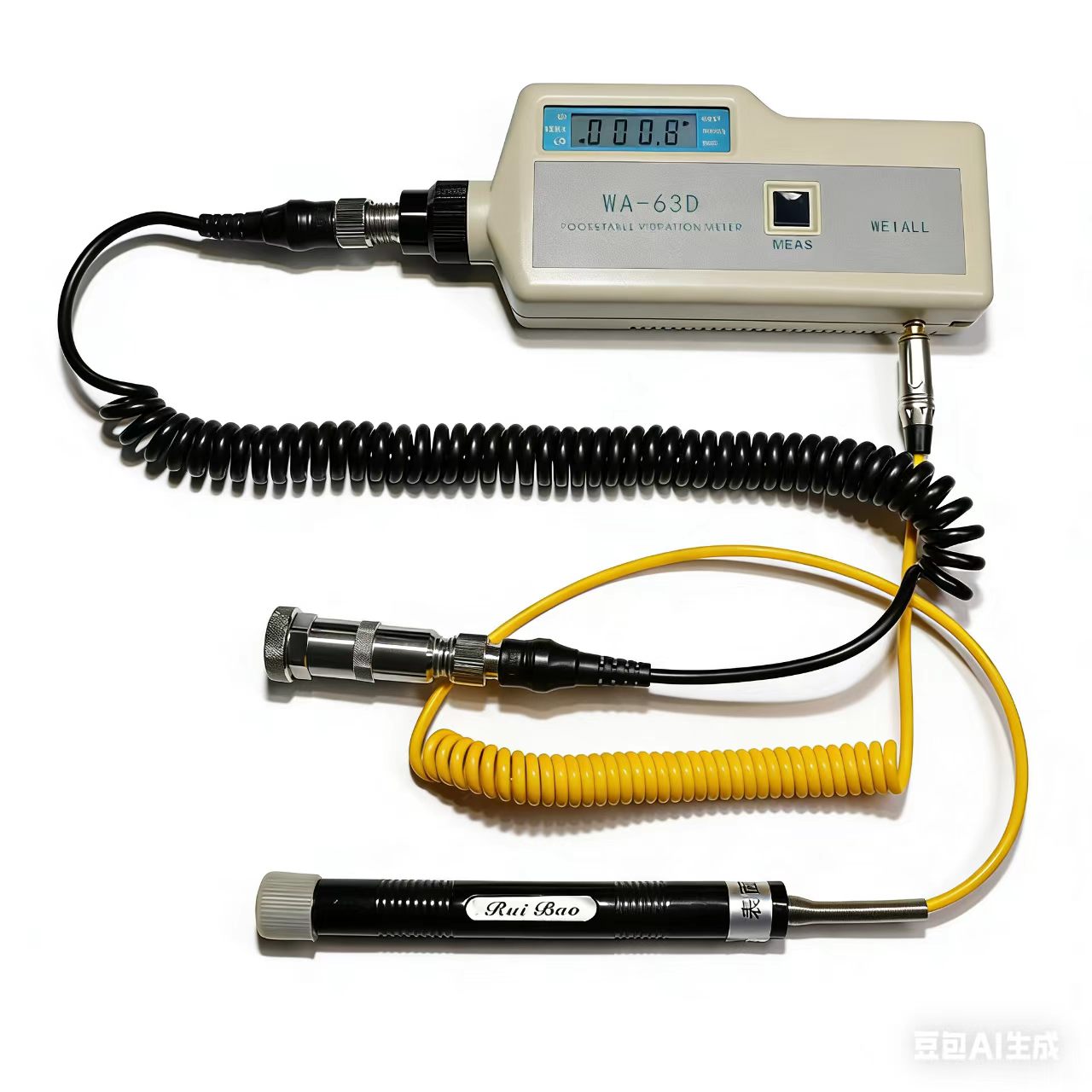

WA-63 Vibration Meter with External Temp. Probe

Upgraded version of WA-63 Vibration Meter temperature measurement range: 0℃–200℃
Equipped with an external sensor, it retains the accurate vibration measurement parameters of the original model and adds temperature measurement function.
One instrument for multiple purposes, suitable for more testing scenarios.

#Vibration Meter #Vibration And Temperature Meter #Instrument #Testing Equipment

Inquiry

Service Hotline
0755-89603811 86+ 18026900716

Product details

Piezoelectric accelerometer ( type)

Measurement range

Acceleration：0.1～199.9m/ s²Peak(RMS×1.414)

Velocity： 0.1～199.9 mm/s RMS

Displacement： 0.001～1.999 mm P-P(RMS×2.828)

Measurement accuracy：: ±5% ±2 digits

Measurement frequency range

Acceleration：10Hz～1kHz(LO)

1kHz～15kHz(HI)

Velocity：10Hz～1kHz

Displacement ：10Hz～1kHz

The battery ：6F22(9V)×1

Power supply ： 9V 7mA

Battery life : About 25h continuous use(at25℃with manganese battery).

Ambient conditions:-10 to +50℃ , 30 to 90%RH(no condensation).

temperature measurement range: 0℃–200℃
